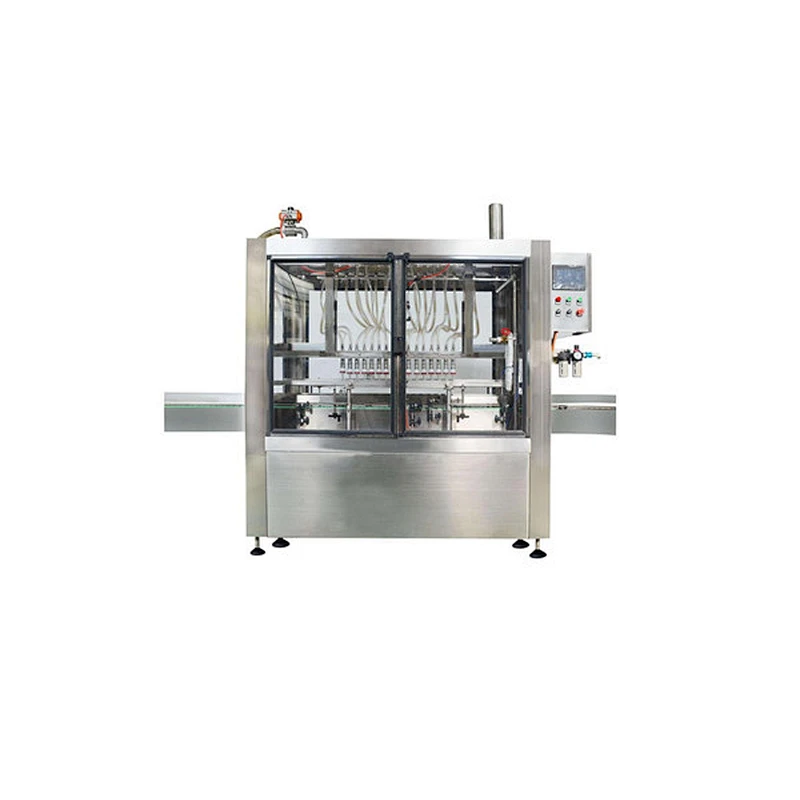

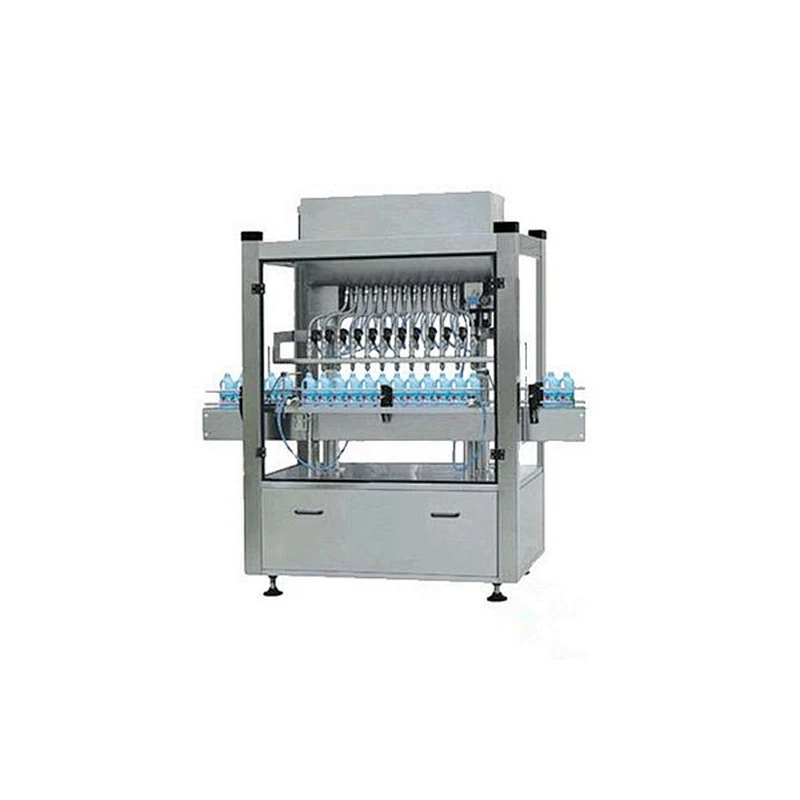

Sanitizer gel filling machine

Process: Manual bottle feeding-Automatic bottle blocking-Automatic filling-Manual putting the cap-Automatic capping

Filling machine discription ：

1. PLC intelligent control, automatic bottle blocking, bottle setting and filling. The high-precision magnetic pump filling system can be used to independently adjust the filling volume.

2. The filling is controlled by a magnetic pump, with the function of filling and lifting at the same time, it can fill foam products, and the filling head is anti-drip and leak-proof

3. Filling range 20-1500ML,

4. The main body of the machine is composed of aluminum alloy and stainless steel 304

Automatic Filling machine parameter:

Filling speed 100ml-200ml: 1800-2000BPH,500ml:1300-1400BPH

Filling tolerance ±1ml , Filling volume 20ml-1500ml

Filling pump Magnetic pump ,Voltage AC220V，50/60Hz，

Machine size 2100*1000*1750mm, Machine weight 300kg

Automatic Capping machine parameter:

Bottle height 100-400mm ,Capping speed 40-45pcs/min

Air pressure 0.4-0.6mpa,Torque range 5-12kg.cm

Cap diameter 20-50mm ,Voltage AC220V，50/60Hz，

Machine size 2100*750*1750mm ,Machine weight 300kg
